use only organic pads
do not use syntered pads

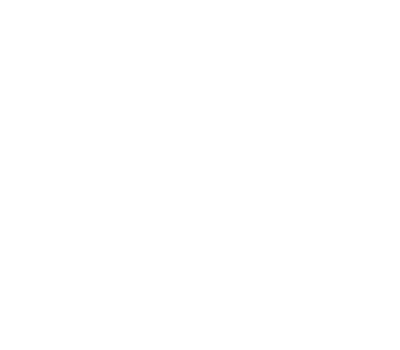

TIPO D
|
||||||||||
| D | Pi | Di | Df | Dh | N. holes | S | Se | Floating | LIGHTN.ED | MOTORCYCLE |
| 200 | 34 | 60 | 80 | 8 | 5 | 5 | 20 | NO | BULTACO 50 cc | |
| 200 | 34 | 60 | 80 | 8 | 5 | 5 | 20 | YES | BULTACO 50 cc | |
| 220 | 34 | 60 | 80 | 8 | 5 | 5 | 20 | NO | MBA, MOTOBECANE 125cc | |
| 220 | 34 | 60 | 80 | 8 | 5 | 5 | 20 | YES | MINARELLI 125 cc | |
| 229 | 48 | 64 | 80 | 8 | 6 | 7 | 11 | YES | YAMAHA 250/3250cc | |
| 230 | 37 | 60 | 80 | 8 | 6 | 6 | 20,25 | NO | BIMOTA 250/350cc | |
| 230 | 37 | 60 | 80 | 8 | 6 | 6 | 20,25 | YES | BIMOTA 250/350cc | |
| 230 | 42 | 67 | 86 | 10 | 4 | 6,5 | 23,8 | NO | DUCATI 750 SS | |
| 260 | 37 | 60 | 80 | 8 | 6 | 6 | 20,25 | YES | BIMOTA, MBA 250cc | |
| 260 | 37 | 60 | 80 | 8 | 6 | 6 | 20,25 | YES | YES | BIMOTA, MBA 250cc |
| 260 | 42 | 80 | 101,5 | 8 | 6 | 6,5 | 27,3 | YES | BIMOTA | |
| 280 | 37 | 60 | 80 | 8 | 6 | 6 | 20,25 | YES | YES | MBA 250cc |
| 280 | 42 | 80 | 101,5 | 8 | 6 | 6,5 | 27,3 | YES | BIMOTA | |
| 285 | 42 | 60 | 78 | 8 | 6 | 6,5 | 26 | YES | YES | SUZUKI 500cc |
| 297 | 48 | 64 | 80 | 8 | 6 | 7 | 22,5 | YES | YES | YAMAHA 250/350/500cc |
| 300 | 42 | 80 | 101,5 | 8 | 6 | 6,5 | 27,3 | YES | YES | MORBIDELLI 500cc |
| 300 | 42 | 80 | 78 | 8 | 6 | 6,5 | 26 | YES | YES | SUZUKI 500cc |

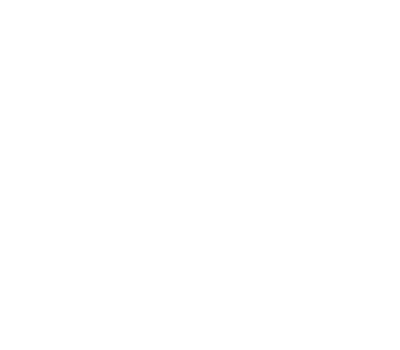

TIPO P
|
||||||||||
| D | Pi | Di | Df | Dh | N. holes | S | Se | Floating | LIGHTN.ED | MOTORCYCLE |
| 190 | 35 | 60 | 90 | 8 | 6 | 5 | NO | KREIDLER 50cc | ||
| 207 | 35 | 60 | 90 | 8 | 6 | 5 | NO | KREIDLER 50cc | ||
| 207 | 35 | 60 | 90 | 8 | 6 | 5 | YES | KREIDLER 50cc | ||
| 210 | 35 | 60 | 90 | 8 | 6 | 5 | YES | VAN VEEN KREIDLER | ||
| 219 | 48 | 60 | 80 | 8 | 6 | 7 | NO | YAMAHA 500cc | ||
| 230 | 37 | 64 | 80 | 8 | 6 | 7 | YES | MBA 250 cc | ||
